Feetech STS3215 12V 30KG High Precision Feedback Magnetic Encoding Servo RC 360 Degree Continuous Rotation Serial Bus TTL Servos

Feetech STS3215 12V 30KG High Precision Feedback Magnetic Encoding Servo 360 Degrees Continuous Rotation Serial Bus TTL Servo ST-3215-C018 is 12V 30

Brand: stemedu

Inventory: 2272 units across variants

Ships to: Canada

Estimated delivery: 7-7 days

$20.56

$21.64

Selected variant: urt-1

442 units available

You can add products as a guest. Checkout asks for a Polar Parts account before payment.

Variant pricing ranges from $16.59 to $69.04.

Why customers buy this

Bench-ready product details with transparent Canadian pricing.

Simple checkout and clear order updates after purchase.

A strong fit for repair bins, starter kits, and repeat bench use.

Description

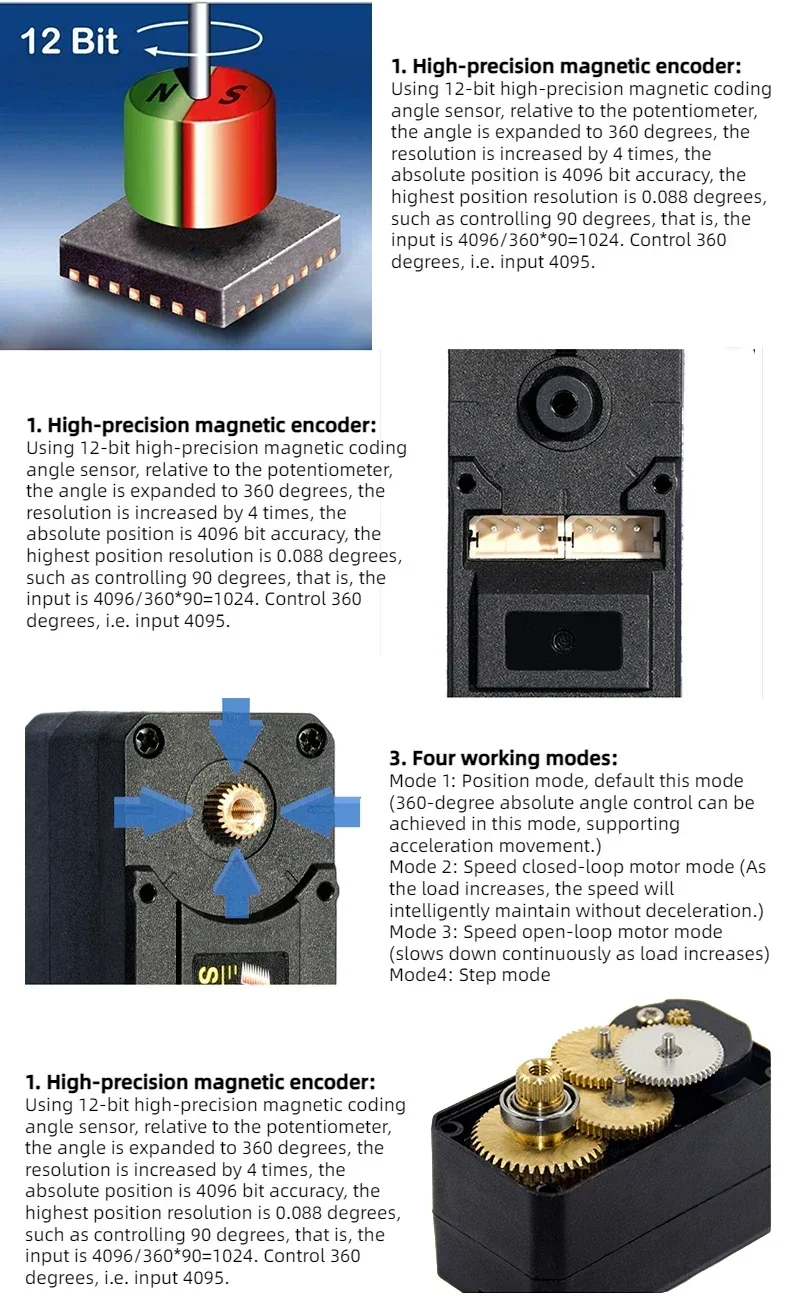

Feetech STS3215 12V 30KG High Precision Feedback Magnetic Encoding Servo 360 Degrees Continuous Rotation Serial Bus TTL Servo ST-3215-C018 is 12V 30kg serial bus smart servo,adopt plastic case,core motor,metal gearbox,Feetech self researched and developed TTL control board,12 bit high precision magnetic coding sensor. The stall torque is 30kg.cm,can achieve 0-360 degrees any angle controllable,multi-turn continuous operation mode, it can realize the function of setting the middle point with one key,acceleration slow start and slow stop,can feedback position,speed,voltage,current,temperature,load parameters,thus, overload and over-current protection can be realized. It is suitable for application in industrial equipment, robot and Small torque drive application scenarios.     STS3215: Model: ST-3215-C018 Product Name: 12V 30KG. Dual axis TTL string servo Storage Temperature Range -30℃～80℃ Operating Temperature Range: -20℃～60℃ Size: A:45.2mm B:24.7mm C:35mm Weight: 55± 1g Gear type: steel Gear Limit angle: NO limit Bearing: Ball bearings Horn gear spline: 25T/OD5.9mm Horn type: Plastic,POM Case: PA+GF Connector wire: 15CM Motor: Core Motor Operating Voltage Range: 4-14V No load speed: 0.222sec/60°@12V Runnig current(at no load) : 180 mA@12V Peak stall torque: 30kg.cm@12V Rated torque: 10kg.cm@12V Stall current: 2.7A@12V Command signal: DigitalPacket Protocol Type: Half Duplex Asynchronous Serial Communication ID range: 0-253 Communication Speed: 38400bps ~ 1 Mbps Running degree: 360° (when 0~4096) Feedback: Load, Position, Speed,  Input Voltage, Current

Specs

Brand Name
stemedu
High-concerned chemical
None
Recommend Age
14+y
Certification
CE
Certification
RoHS
Origin
Mainland China
Material
Plastic
Upgrade Parts/Accessories
Gear
Model Number
STS3215
Brand Name
Feetech
servo type
standard robot servo motor
servo torque
30kg torque servo motor
servo gear
metal gear servo motor
servo motor
core motor
servo angle
360 degree servo moror
servo speed
0.1s high speed servo motor
servo feedback
servo with position current feedback
servo function
step mode working servomotor
servo protection
auto protection servo motor
servo application
servo for DIY robot industry equipment servo motor
